Mixed Flow Inline Fan Manufacturer in India
INTELLIFAN is a Mixed Flow Inline Fan Manufacturer in India, offering duct-mounted Mixed Flow Inline Fans for residential, commercial, and industrial ventilation applications. Designed for inline duct installation, these fans are suitable for fresh-air supply, exhaust ventilation, HVAC systems, and general ducted air movement.
The INTELLIFAN range is available in 100 mm, 150 mm, 200 mm, 250 mm, and 315 mm duct sizes, with airflow capacities from 204 m³/h to 2,200 m³/h and static pressures up to 690 Pa (220 V / 50 Hz).
Looking to buy a Mixed Flow inline fan for your project? Explore the available sizes below or contact INTELLIFAN for product details, bulk requirements and quotation.
Request a Project Quote
Connect directly with the INTELLIFAN engineering desk.
Mixed Flow Inline Fans by INTELLIFAN
INTELLIFAN offers a range of Mixed Flow Inline Fans for ducted ventilation systems. Multiple duct sizes allow customers to select a fan according to their existing or planned duct diameter and overall ventilation requirements.

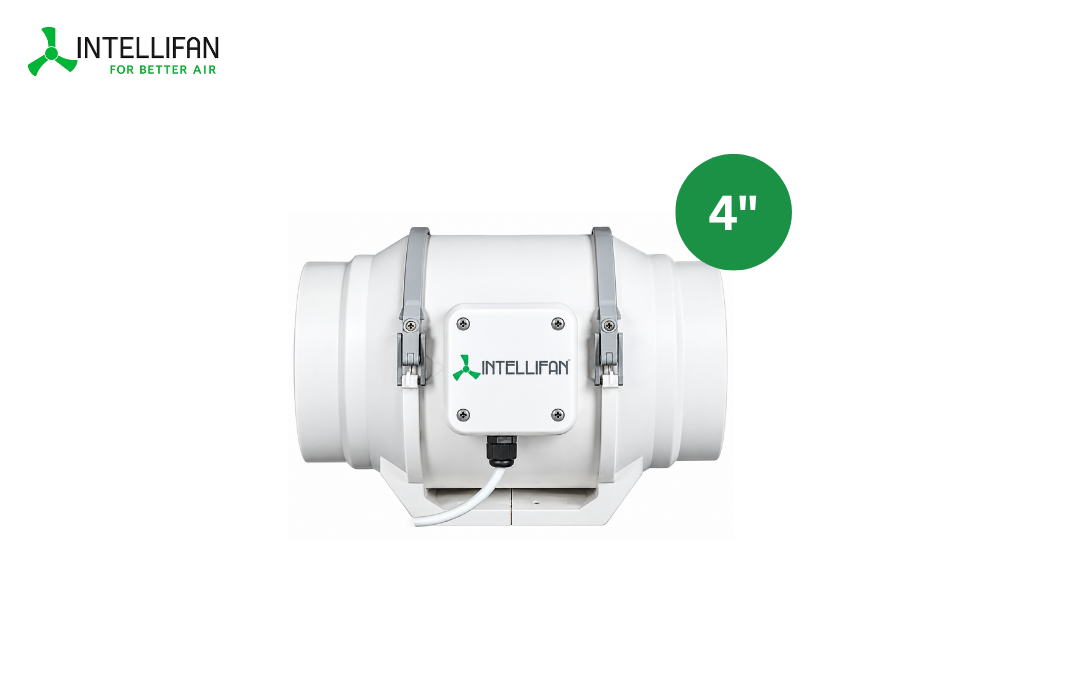

4 Inch Centrifugal Inline Fan (100 mm)
The INTELLIFAN IN ID-100P is a compact mixed flow inline fan designed for Ø100 mm duct systems in small exhaust and fresh-air runs.
| Parameter | Details |
|---|---|
| Model | IN ID-100P |
| Fan Size | Ø100 mm |
| Airflow | 204 m³/h |
| Static Pressure | 132 Pa |
| Power | 40 W |
| Noise | 31 dB |
| Weight | 1.55 kg |

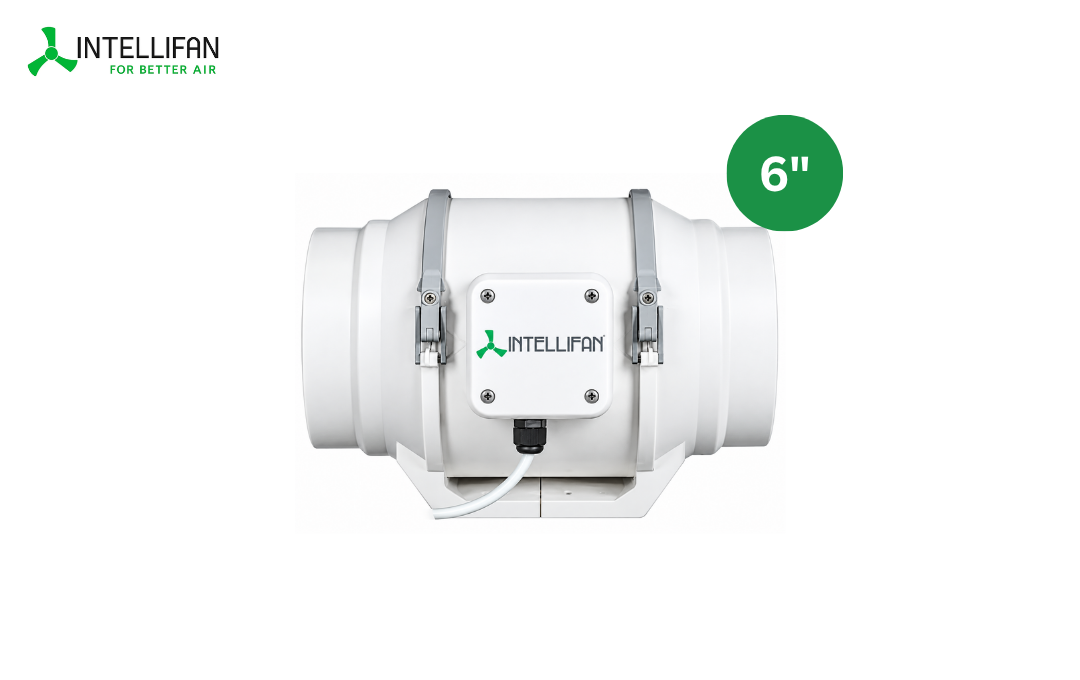

6 Inch Centrifugal Inline Fan (150 mm)
The IN ID-150P is designed for Ø150 mm ductwork, providing 450 m³/h airflow with a maximum listed static pressure of 280 Pa.
| Parameter | Details |
|---|---|
| Model | IN ID-150P |
| Fan Size | Ø150 mm |
| Airflow | 450 m³/h |
| Static Pressure | 280 Pa |
| Power | 60 W |
| Noise | 33 dB |
| Weight | 2.5 kg |

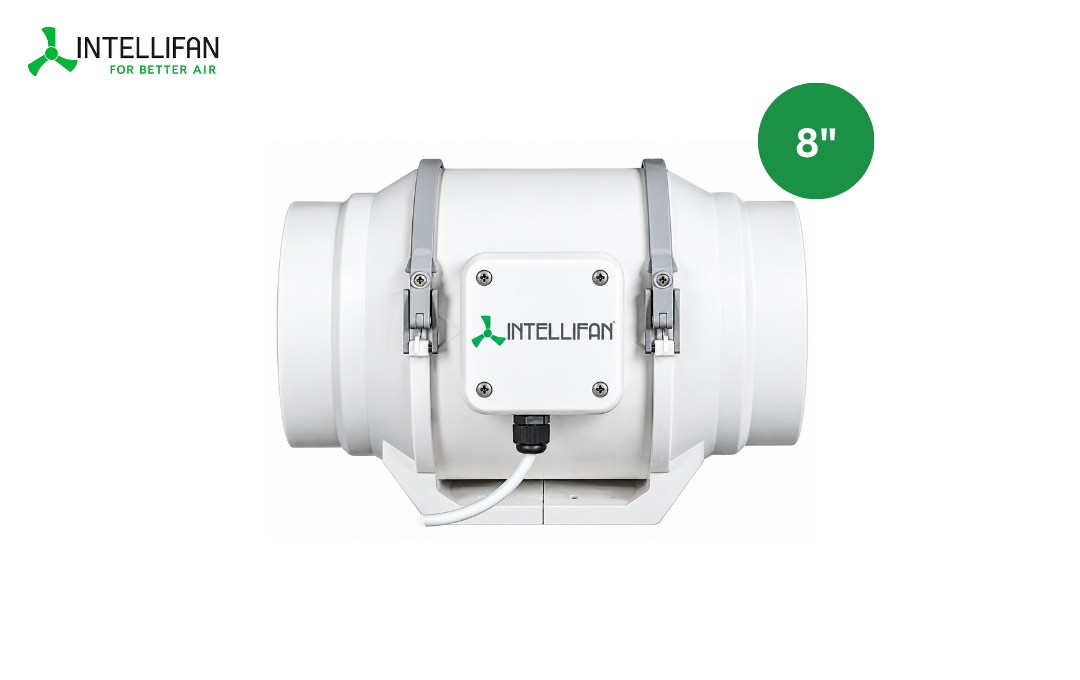

8 Inch Centrifugal Inline Fan (200 mm)
The IN ID-200P is a Ø200 mm mixed flow inline duct fan designed for higher-airflow ducted commercial ventilation requirements.
| Parameter | Details |
|---|---|
| Model | IN ID-200P |
| Fan Size | Ø200 mm |
| Airflow | 840 m³/h |
| Static Pressure | 350 Pa |
| Power | 100 W |
| Noise | 63 dB |
| Weight | 3.1 kg |

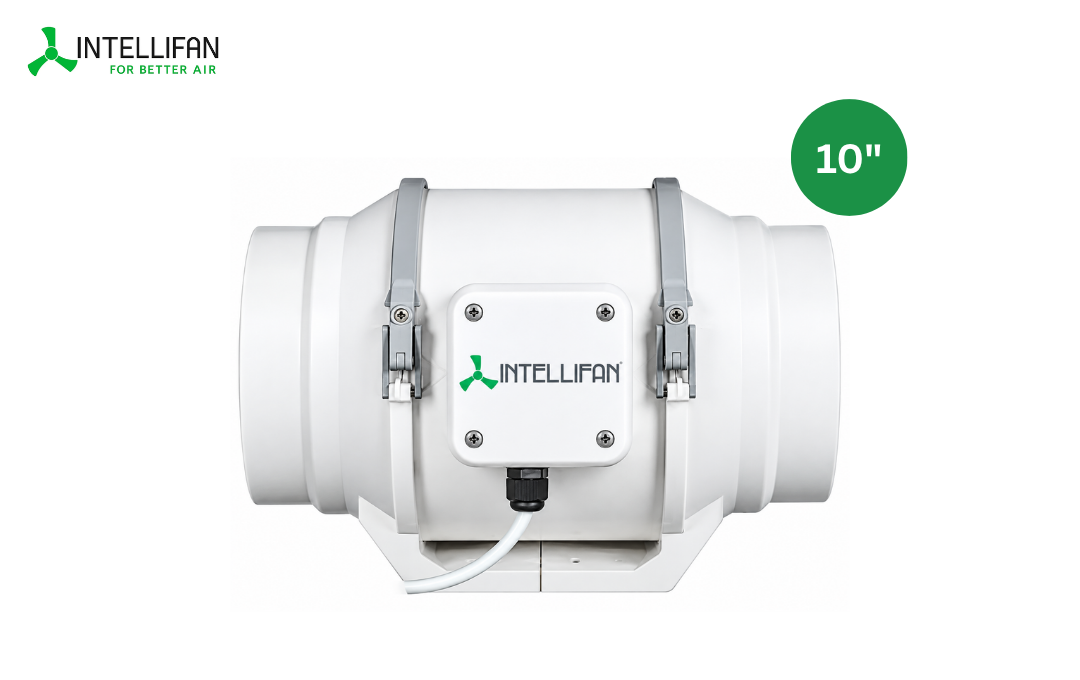

10 Inch Centrifugal Inline Fan (250 mm)
The IN ID-250P is a Ø250 mm mixed flow inline fan for larger ducted ventilation applications, generating 1,400 m³/h at 489 Pa.
| Parameter | Details |
|---|---|
| Model | IN ID-250P |
| Fan Size | Ø250 mm |
| Airflow | 1,400 m³/h |
| Static Pressure | 489 Pa |
| Power | 150 W |
| Noise | 66 dB |
| Weight | 7.5 kg |

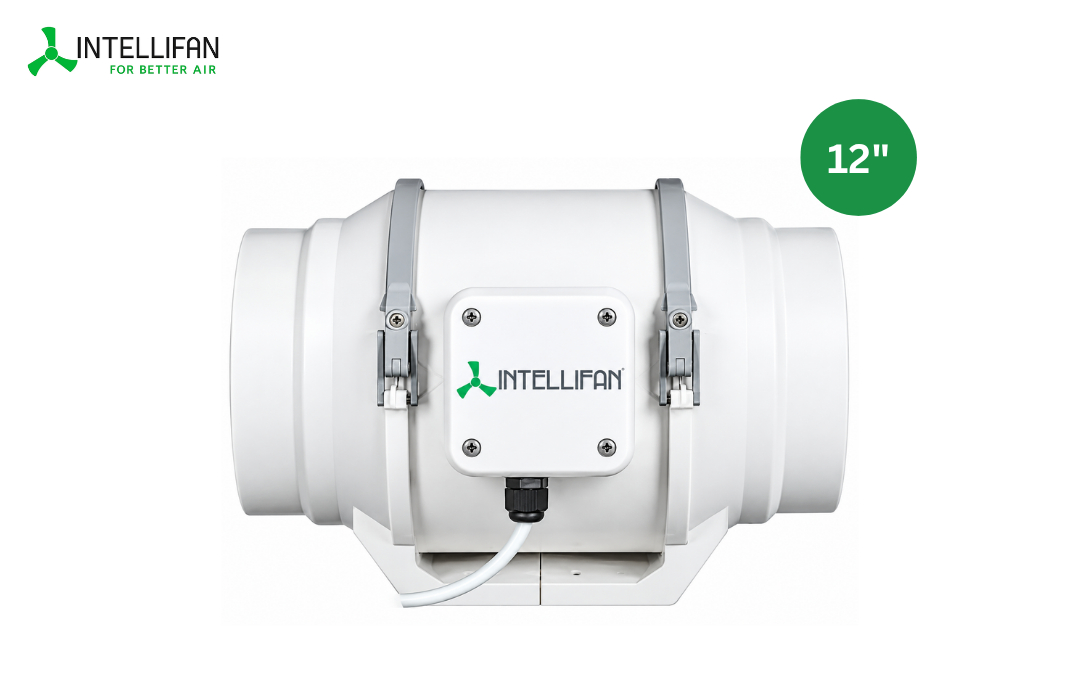

12 Inch Centrifugal Inline Fan (315 mm)
The largest model in the range, the IN ID-315P is built for Ø315 mm ducting, moving 2,200 m³/h air volume against high resistance with 690 Pa.
| Parameter | Details |
|---|---|
| Model | IN ID-315P |
| Fan Size | Ø315 mm |
| Airflow | 2,200 m³/h |
| Static Pressure | 690 Pa |
| Power | 200 W |
| Noise | 69 dB |
| Weight | 10.4 kg |
Key Product Features
Combining aerodynamic mixed-flow impeller design with durable duct casing configurations for low noise and superior air movement.
Mixed Flow Fan Design
Combines mixed-flow airflow characteristics to deliver balanced high air delivery with steady static pressure in ducted runs.
Inline Duct Installation
Installs directly along the duct route, making it optimal for false-ceiling concealment and space-conscious duct layouts.
Multiple Duct Sizes
Available in 100 mm, 150 mm, 200 mm, 250 mm, and 315 mm collar connections to fit standard HVAC spiral and flexible ducting.
High Airflow Capacity
Wide operating airflow range from 204 m³/h on compact models up to 2,200 m³/h for high-volume commercial ventilation.
Robust Static Pressure
Delivers static pressure ratings from 132 Pa up to 690 Pa, overcoming resistance from duct bends, grilles, and inline filters.
Fresh Air & Exhaust Applications
Versatile engineering suited for dedicated fresh-air intake, foul air extraction, HVAC boosting, and cross-ventilation.
Compact Duct-Mounted Configuration
Eliminates the requirement for bulky wall penetrations or floor units by mounting seamlessly along the defined duct path.
Mixed Flow Inline Fan Applications
INTELLIFAN Mixed Flow Inline Fans can be used in suitable ventilation systems across multiple sectors.
Residential Ventilation
Homes, bathrooms, kitchens, basements, and multi-story apartment exhaust.
Commercial Buildings
Offices, retail stores, clinics, corporate meeting rooms, and institutional facilities.
HVAC & Mechanical Systems
Ducted HVAC systems requiring booster air movement and balanced supply runs.
Fresh Air & Extraction
Controlled outdoor fresh air transfer and continuous ducted air extraction.
Mixed Flow Inline Fan Dimensions
Casing and connection dimensions for duct planning and false-ceiling clearance verification.
| Model | Length (L) | Width (W) | Height (H) | Duct Connection |
|---|---|---|---|---|
| IN ID-100P | 257 mm | 180 mm | 215 mm | Ø99 mm |
| IN ID-150P | 302 mm | 210 mm | 245 mm | Ø148 mm |
| IN ID-200P | 302 mm | 230 mm | 270 mm | Ø198 mm |
| IN ID-250P | 390 mm | 280 mm | 310 mm | Ø248 mm |
| IN ID-315P | 450 mm | 320 mm | 413 mm | Ø313 mm |
Why Choose INTELLIFAN Mixed Flow Inline Fans?
Engineered for contractor reliability, system efficiency, and pan-India project fulfillment.
- Complete Size Range: Direct availability from 100 mm to 315 mm duct diameters.
- Performance Versatility: Tailored airflow options from 204 to 2,200 m³/h and static pressures up to 690 Pa.
- Duct-Mounted Flexibility: Adaptable for fresh-air supply, exhaust air, HVAC boosting, and cross-ventilation.
- Technical Product Selection: Dedicated engineering support to match airflow, static pressure, and branch duct layouts.
- Bulk & Project Enquiries: Supporting HVAC contractors, dealers, distributors, builders, and MEP consultants nationwide.
Mixed Flow Inline Fan Manufacturer in Ghaziabad (Delhi NCR)?
INTELLIFAN operates its core manufacturing presence at Sahibabad Industrial Area, Ghaziabad, Uttar Pradesh. We support fast dispatch across Ghaziabad, Delhi, Noida, Greater Noida, Delhi NCR, Uttar Pradesh, and all major cities across India.
Need Model Selection Assistance?
Not sure which mixed flow model fits your ducting run? Share your project parameters with our team:
Get a Quote for Mixed Flow Inline Fans
Share your duct diameter, target air volume, and project requirement to receive a direct factory quotation and engineering support from INTELLIFAN.
