Centrifugal Inline Fan Manufacturer in India
INTELLIFAN is a Centrifugal Inline Fan Manufacturer in India, offering duct-mounted centrifugal fans for ventilation, exhaust, HVAC and air movement applications. The INTELLIFAN centrifugal inline fan range is available in 4 inch, 6 inch, 8 inch, 10 inch and 12 inch sizes for different ducting requirements.
These fans are designed for installation within or along ductwork to move air through a ventilation system. The appropriate fan should be selected according to duct size, required airflow, static pressure and the overall system design.
Looking to buy a centrifugal inline fan for your project? Explore the available sizes below or contact INTELLIFAN for product details, bulk requirements and quotation.
Request a Project Quote
Connect directly with the INTELLIFAN engineering desk.
Centrifugal Inline Fans by INTELLIFAN
INTELLIFAN offers a range of centrifugal inline fans for ducted ventilation systems. Multiple duct sizes allow customers to select a fan according to their existing or planned duct diameter and overall ventilation requirements.

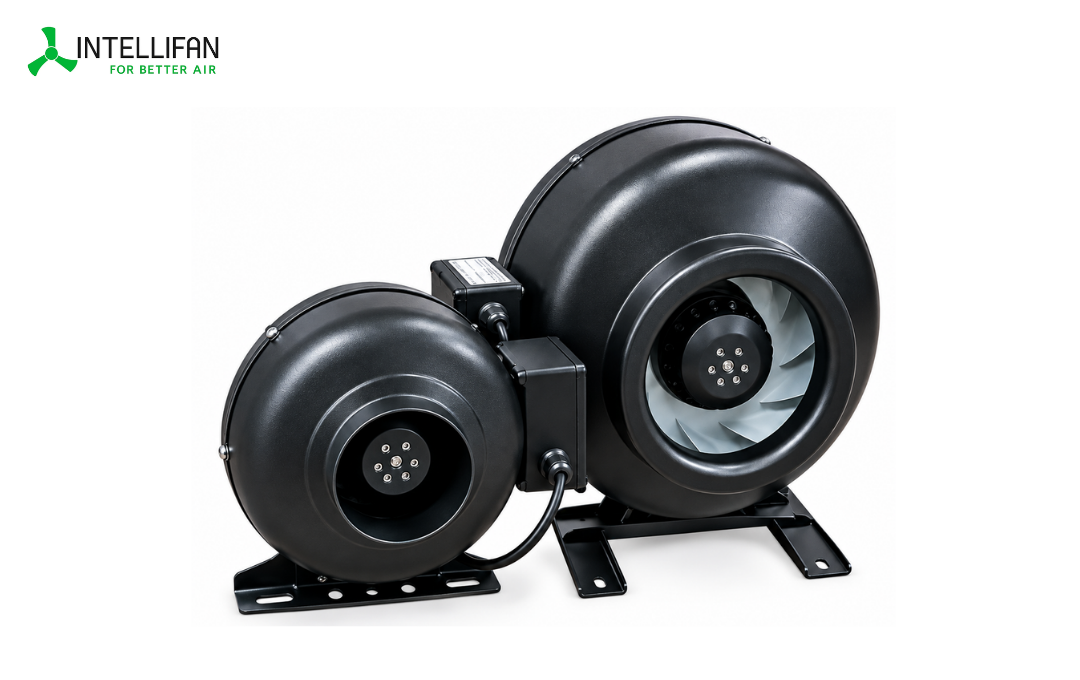

4 Inch Centrifugal Inline Fan (100 mm)
Manufactured by INTELLIFAN (Sahibabad, Ghaziabad), the IN MC 100 is engineered for compact duct installations, delivering 300 m³/h air volume with a robust 377 Pa static pressure for spot extraction and filtration runs.
| Parameter | Specification Details |
|---|---|
| Model Number | IN MC 100 |
| Duct Diameter | 4 Inch / 100 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
| Power Rating | 61 W |
| Air Volume | 300 m³/h |
| Static Pressure | 377 Pa |
| Noise Level | 62 dB |
| Net Weight | 3.5 Kg |
| Applications | Commercial Buildings, Fresh Air Systems, Air Filtration, Offices, Basements, HVAC |
6 Inch Centrifugal Inline Fan (150 mm)
The IN MC 150 inline centrifugal fan delivers 700 m³/h airflow with 399 Pa static pressure at an efficient 88W power consumption, making it ideal for medium ducted ventilation runs and fresh air supply lines.
| Parameter | Specification Details |
|---|---|
| Model Number | IN MC 150 |
| Duct Diameter | 6 Inch / 150 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
| Power Rating | 88 W |
| Air Volume | 700 m³/h |
| Static Pressure | 399 Pa |
| Noise Level | 66 dB |
| Net Weight | 5.0 Kg |
| Applications | Commercial Buildings, Fresh Air Systems, Air Filtration, Offices, Basements, HVAC |
8 Inch Centrifugal Inline Fan (200 mm)
Engineered for high-demand commercial HVAC and exhaust runs, the IN MC 200 operates at 168W, driving 1165 m³/h air volume against high resistance with 594 Pa static pressure.
| Parameter | Specification Details |
|---|---|
| Model Number | IN MC 200 |
| Duct Diameter | 8 Inch / 200 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
| Power Rating | 168 W |
| Air Volume | 1165 m³/h |
| Static Pressure | 594 Pa |
| Noise Level | 70 dB |
| Net Weight | 5.8 Kg |
| Applications | Commercial Buildings, Fresh Air Systems, Air Filtration, Offices, Basements, HVAC |

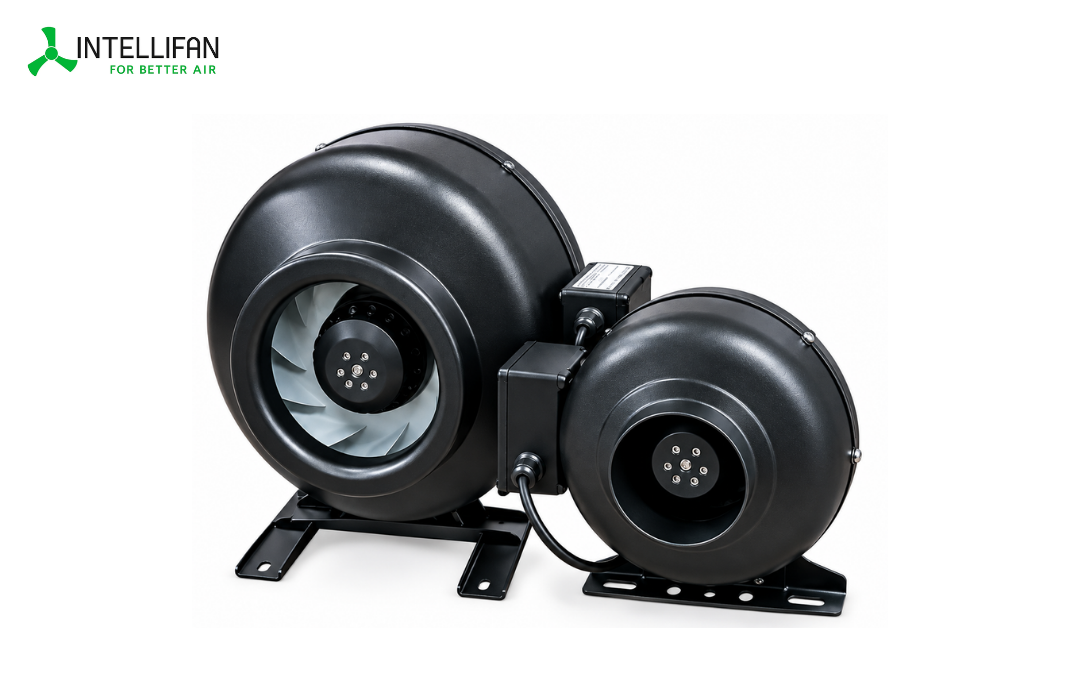

10 Inch Centrifugal Inline Fan (250 mm)
Delivering 1255 m³/h air volume with 596 Pa static pressure, the 185W IN MC 250 is built for extended ducted paths, branch duct networks, and multi-grille mechanical ventilation.
| Parameter | Specification Details |
|---|---|
| Model Number | IN MC 250 |
| Duct Diameter | 10 Inch / 250 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
| Power Rating | 185 W |
| Air Volume | 1255 m³/h |
| Static Pressure | 596 Pa |
| Noise Level | 70 dB |
| Net Weight | 5.9 Kg |
| Applications | Commercial Buildings, Fresh Air Systems, Air Filtration, Offices, Basements, HVAC |

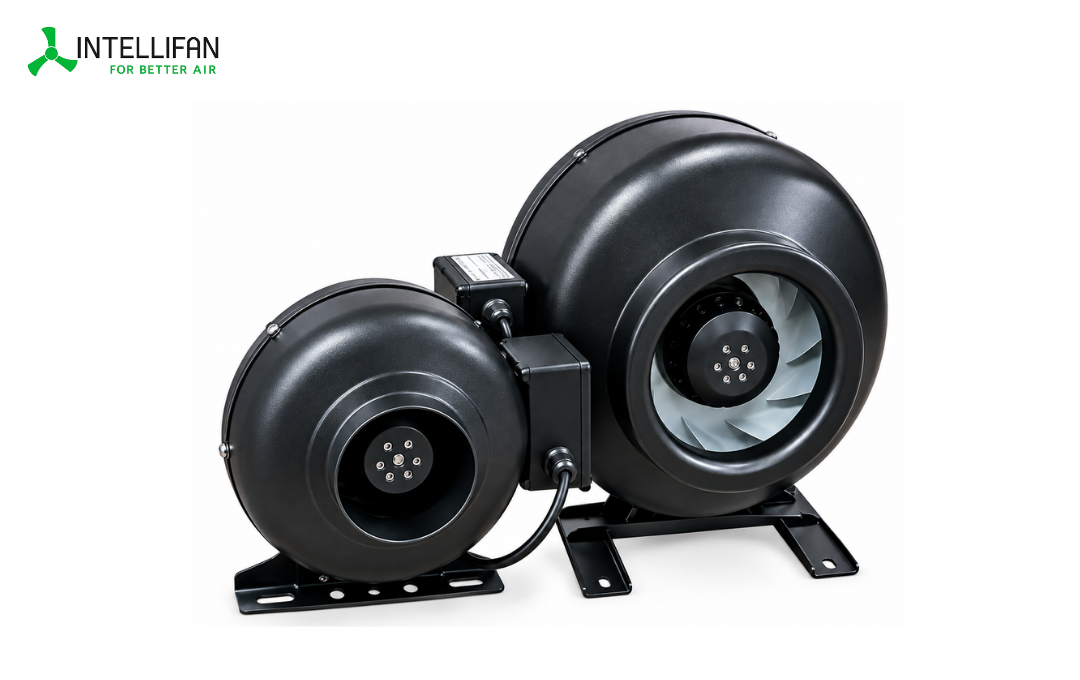

12 Inch Centrifugal Inline Fan (315 mm)
The highest capacity centrifugal unit in the line, the IN MC 315 generates 1740 m³/h air volume at an impressive 720 Pa static pressure (223W), built for commercial plant rooms and large building ventilation.
| Parameter | Specification Details |
|---|---|
| Model Number | IN MC 315 |
| Duct Diameter | 12 Inch / 315 mm |
| Voltage / Frequency | 220–240 V / 50 Hz |
| Power Rating | 223 W |
| Air Volume | 1740 m³/h |
| Static Pressure | 720 Pa |
| Noise Level | 76 dB |
| Net Weight | 7.0 Kg |
| Applications | Commercial Buildings, Fresh Air Systems, Air Filtration, Offices, Basements, HVAC |
How Does a Centrifugal Inline Fan Work?
A centrifugal inline fan draws air into the ventilation system and moves it through the connected ductwork.
Air Intake → Ductwork → Centrifugal Inline Fan → Ductwork → Air Discharge
The actual airflow delivered by a fan depends on the fan characteristics and the resistance created by the complete system. Factors such as duct length, bends, filters, grilles and other components can affect system resistance. Therefore, fan selection should consider the complete ventilation design.
Centrifugal Inline Fan for Ducted Ventilation
Centrifugal inline fans are suitable for systems where air needs to be moved through ductwork rather than discharged directly through a wall or opening. Depending on the system design, they can be used for:
- Ducted ventilation
- Exhaust air movement
- HVAC air movement
- Fresh air movement
- Air extraction
- Commercial ventilation
- Industrial ventilation
- Building ventilation
The correct fan should be selected according to the airflow and pressure requirements of the specific application.
Where Can Centrifugal Inline Fans Be Used?
HVAC Ventilation: Centrifugal inline fans can be incorporated into suitable HVAC and mechanical ventilation systems where air needs to travel through ductwork.
Exhaust Ventilation: They can be used in ducted exhaust systems to move air from an enclosed area toward an intended discharge point.
Fresh Air Ventilation: Where a fresh-air ventilation system requires ducted air movement, a suitable inline fan can be incorporated into the overall system.
Commercial Buildings: Offices, commercial spaces and other buildings may use ducted ventilation systems to distribute or extract air.
Industrial Ventilation: Industrial facilities can use ducted ventilation arrangements for controlled air movement and extraction, depending on the application.
Centrifugal Inline Fan vs Conventional Exhaust Fan
Both products can be used for ventilation, but they are generally used in different system configurations.
| Feature | Centrifugal Inline Fan | Conventional Exhaust Fan |
|---|---|---|
| Installation | Within or connected to ductwork | Usually mounted at a wall, window or opening |
| Airflow Path | Through duct system | Generally direct discharge |
| Ducted Application | Designed for ducted systems | Depends on product design |
| System Selection | Duct size, airflow and pressure | Application and required airflow |
| Typical Use | Ducted ventilation and air movement | Direct exhaust ventilation |
Why Choose INTELLIFAN for Centrifugal Inline Fans?
INTELLIFAN focuses on ventilation and air movement products for commercial, industrial and building applications.
- Multiple Fan Sizes: Featured range includes 4, 6, 8, 10 and 12 inch (100–315 mm) sizes.
- Manufacturer-Focused Product Range: Supporting customers looking for reliable ducted air movement solutions.
- Multiple Ventilation Applications: Suitable for HVAC, exhaust, fresh air and general ventilation.
- Application-Based Selection: Sizing support based on duct dimensions and required airflow.
- Bulk & Project Requirements: Direct supply for contractors, dealers, distributors and builders.
- Pan-India Supply: Supplying ventilation projects nationwide from our Sahibabad manufacturing base.
Centrifugal Inline Fan Manufacturer in Ghaziabad
INTELLIFAN has its manufacturing presence at Sahibabad Industrial Area, Ghaziabad, Uttar Pradesh, in the Delhi NCR region. Customers looking for a centrifugal inline fan manufacturer in Ghaziabad can contact INTELLIFAN for available fan sizes, product information, bulk requirements and project enquiries across Ghaziabad, Delhi NCR, Noida, Uttar Pradesh and other parts of India.
Bulk, OEM & Project Requirements
Businesses requiring fans for commercial projects or recurring procurement can share useful specifications including:
- Fan size and required quantity
- Application and duct diameter
- Airflow and static pressure requirements (if available)
- Project location and installation arrangement
FAQs about Centrifugal Inline Fan Manufacturer
Who is a Centrifugal Inline Fan Manufacturer in India?
INTELLIFAN is a Centrifugal Inline Fan Manufacturer in India, offering 4, 6, 8, 10 and 12-inch (100–315 mm) centrifugal inline fans for ducted ventilation, exhaust, HVAC and air movement applications.
Get a Centrifugal Inline Fan Quote from INTELLIFAN
INTELLIFAN offers 4, 6, 8, 10 and 12-inch centrifugal inline fans for ducted ventilation, HVAC, exhaust and air movement applications across India.
